How to Order Pemko Continuous Hinges
Continuous Hinge: Aluminum, 83 in Door Leaf Ht, 1 7/8 in Door Leaf Wd, 2 in Overall Knuckle Ht
- Item # 40CE88
- Mfr. Model # CHS83HD1-HT-LH
- UNSPSC # 31162403
- Catalog Page # 2012 2012
Country of Origin USA. Country of Origin is subject to change.
Made to distribute weight evenly along the full length of the door and door frame, this Pemko Continuous (Piano) Hinge helps reduce door sag and similar alignment problems, and provides reinforcement for both the door and the frame. The geared design ensures that both leafs operate identically to help reduce the effort required to open heavy commercial and industrial doors. Full-length channel cap seals the common gap between the door and frame; provides excellent pry resistance for improved security, and helps keep fingers from being caught and pinched in the gap. A tamper-resistant easy-to-clean hospital tip provides further security for use in hospital psych wards and other areas with stringent security requirements. Mounts with no special door or frame preps. Can be cut to length.
Tap image to zoom.
Roll over image to zoom.

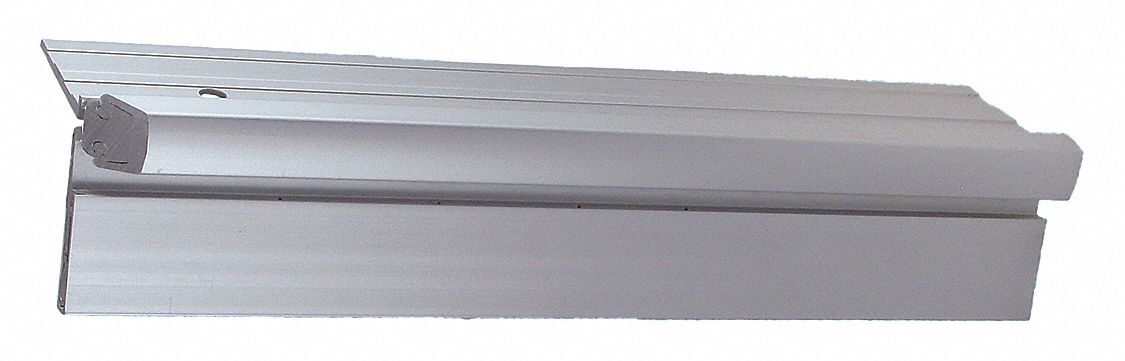

Continuous Hinge: Aluminum, 83 in Door Leaf Ht, 1 7/8 in Door Leaf Wd, 2 in Overall Knuckle Ht
- Item # 40CE88
- Mfr. Model # CHS83HD1-HT-LH
- UNSPSC # 31162403
- Catalog Page # 2012 2012
Country of Origin USA. Country of Origin is subject to change.
Made to distribute weight evenly along the full length of the door and door frame, this Pemko Continuous (Piano) Hinge helps reduce door sag and similar alignment problems, and provides reinforcement for both the door and the frame. The geared design ensures that both leafs operate identically to help reduce the effort required to open heavy commercial and industrial doors. Full-length channel cap seals the common gap between the door and frame; provides excellent pry resistance for improved security, and helps keep fingers from being caught and pinched in the gap. A tamper-resistant easy-to-clean hospital tip provides further security for use in hospital psych wards and other areas with stringent security requirements. Mounts with no special door or frame preps. Can be cut to length.
Technical Specs
- Item Continuous Hinge
- Ligature Resistant Yes
- Material Aluminum
- Range of Motion 108 Degrees
- Finish Mill Aluminum
- Holes With
- Load Capacity 540 lb
- Orientation Left Hand
- Overall Knuckle Height 2 in
- Door Leaf Height 83 in
- Frame Leaf Height 83 in
- Door Leaf Width 1 7/8 in
- Frame Leaf Width 2 in
- Door Leaf Thickness 0.125 in
- Frame Leaf Thickness 0.125 in
- Required Door Thickness 1-3/4 in
- Length 83 in
- Hardware Included
- Hole Spacing Varies
- Holes per Leaf 12
- Mounting Half Surface
- Pin Type Hospital Tip
- Standards ANSI/BHMA A156.26-2000, UL 76Y2, UL10C
- Overall Width 4 1/2 in
- UL Fire Rating UL10C
- Green Certification or Other Recognition Environmental Transparency Through EPD (Environmental Product Declaration)
Made to distribute weight evenly along the full length of the door and door frame, this Pemko Continuous (Piano) Hinge helps reduce door sag and similar alignment problems, and provides reinforcement for both the door and the frame. The geared design ensures that both leafs operate identically to help reduce the effort required to open heavy commercial and industrial doors. Full-length channel cap seals the common gap between the door and frame; provides excellent pry resistance for improved security, and helps keep fingers from being caught and pinched in the gap. A tamper-resistant easy-to-clean hospital tip provides further security for use in hospital psych wards and other areas with stringent security requirements. Mounts with no special door or frame preps. Can be cut to length.
Compliance and Restrictions
- Green Product -This item has been designated by the manufacturer as an environmentally preferable product (EPP) because this item is Environmental Transparency Through EPD (Environmental Product Declaration).
